Jeep JK A Pillar Light Mounts Part Number 10247

Written By: AJ Smith
  • Comments: 0
  • Favorites: 0

Difficulty

Easy

Steps

4

Time Required

01:00:00 - 02:00:00

Sections

1

Flags

0

  1. Verify that all parts shown in the picture are present.

    • Verify that all parts shown in the picture are present.

  2. The mounts use the two factory torx bolts at the base of the windshield frame. Using a T40 torx driver, remove the two bolts. Using a T40 torx driver, remove the two bolts.

    • The mounts use the two factory torx bolts at the base of the windshield frame.

    • Using a T40 torx driver, remove the two bolts.

  3. Identify the left and right side brackets. The mounts can only fit one way, see images. Place the light mounts over the windshield frame holes and re-install hardware. Torque hardware to 15 lb-ft [20Nm]

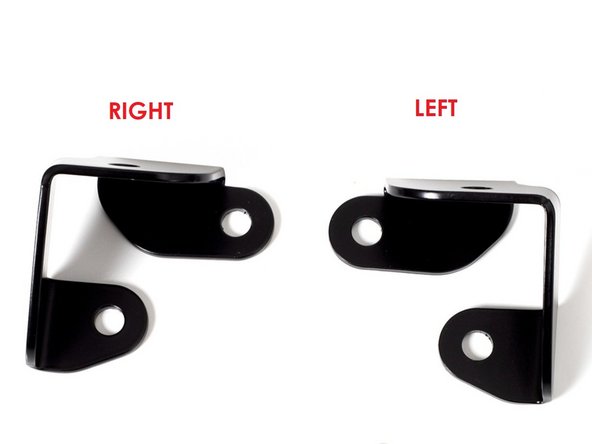

    • Identify the left and right side brackets. The mounts can only fit one way, see images.

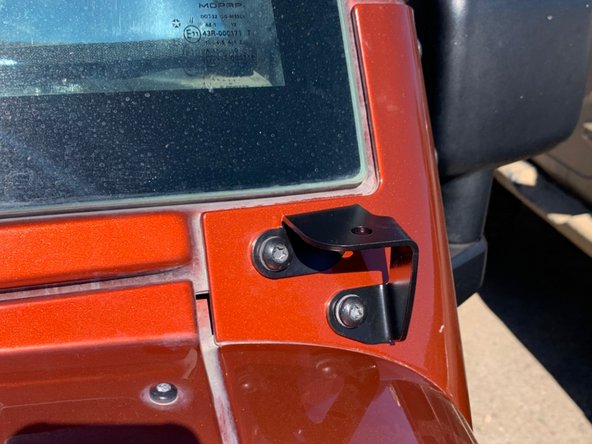

    • Place the light mounts over the windshield frame holes and re-install hardware.

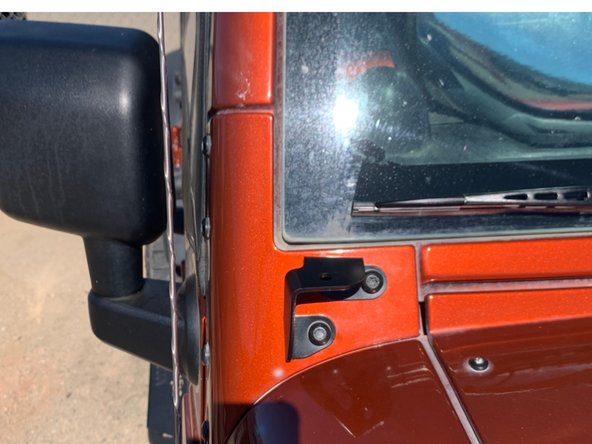

    • Torque hardware to 15 lb-ft [20Nm]

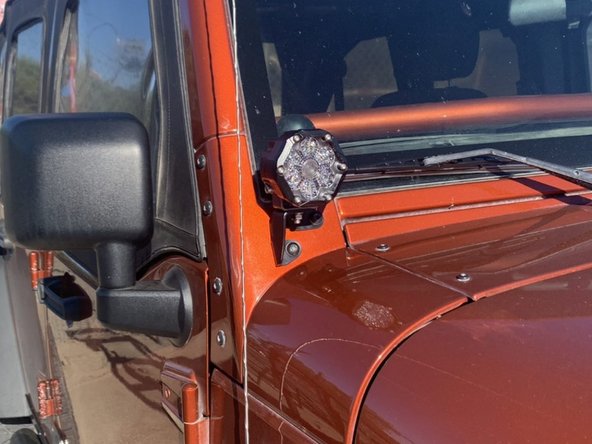

  4. Install lights onto light mounts. Follow wiring instructions provided by the light manufacturer.

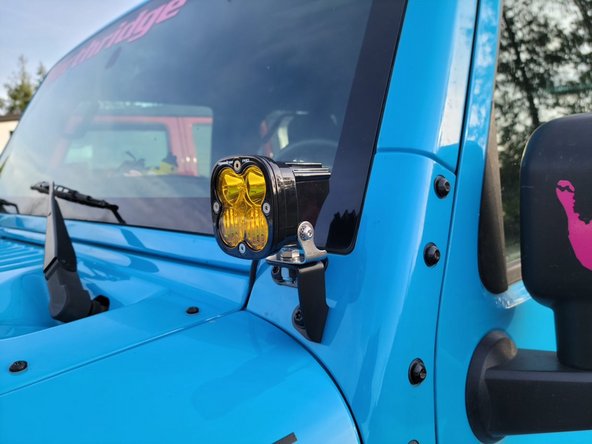

    • Install lights onto light mounts.

    • Follow wiring instructions provided by the light manufacturer.

Conclusion

Installation is complete!

With any modified vehicle, or any vehicle used offroad, it is a good idea to check bolt torques periodically and visually inspect components regularly.
